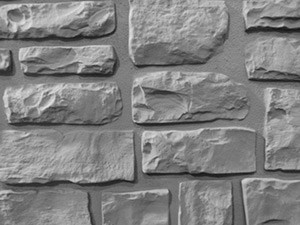

15042

15042

15⁄8" depth
15" x 7.1" rock max
15" x 231⁄4" rock min



 width=

Attachment to Formwork

Form liners can be mounted to their forms with drywall screws either through the face or the back of the liner. Plywood embedded T-nuts are available on urethane liners. For optimal results, follow the full instructions in the application guide.

Form Release

Form release should be applied on all form liners. A VOC compliant, vegetable oil based, release should be tested on the liners before the wall is cast.

Technical Support

Call Fast Formliners at (636) 322-0080 or send us an email.

Other Stone & Rock Patterns
15009

11⁄2" depth
8" x 17" rock max
21⁄2" x 5" rock min

15044

11⁄2" depth
61⁄2" x40", 151⁄2" x 24" rock max
51⁄2" x 16", 7" x 91⁄2" rock min

15012

1" depth
8" x 36" rock max
11⁄2" x 8" rock min
