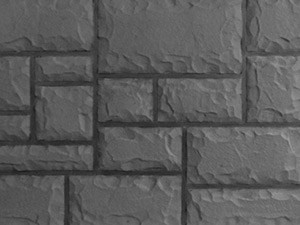

15008

15008

11⁄2" depth
16" x 29" rock max
5" x 8" rock min



 width=

Attachment to Formwork

Form liners can be mounted to their forms with drywall screws either through the face or the back of the liner. Plywood embedded T-nuts are available on urethane liners. For optimal results, follow the full instructions in the application guide.

Form Release

Form release should be applied on all form liners. A VOC compliant, vegetable oil based, release should be tested on the liners before the wall is cast.

Technical Support

Call Fast Formliners at (636) 322-0080 or send us an email.

Other Stone & Rock Patterns
15053

11⁄2" depth
83⁄4" x 18" rock max
31⁄4" x 31⁄2" rock min

15032

11⁄2" depth
171⁄2" x 18" rock max
41⁄2" x 61⁄2" rock min

15059

2" depth
133⁄4" x 451⁄2" rock max
133⁄4" x 161⁄2" rock min
